Conversation Patterns

In AG2, who talks to whom shapes the behavior of a multi-agent app. Agentok Studio models this with edges between nodes.

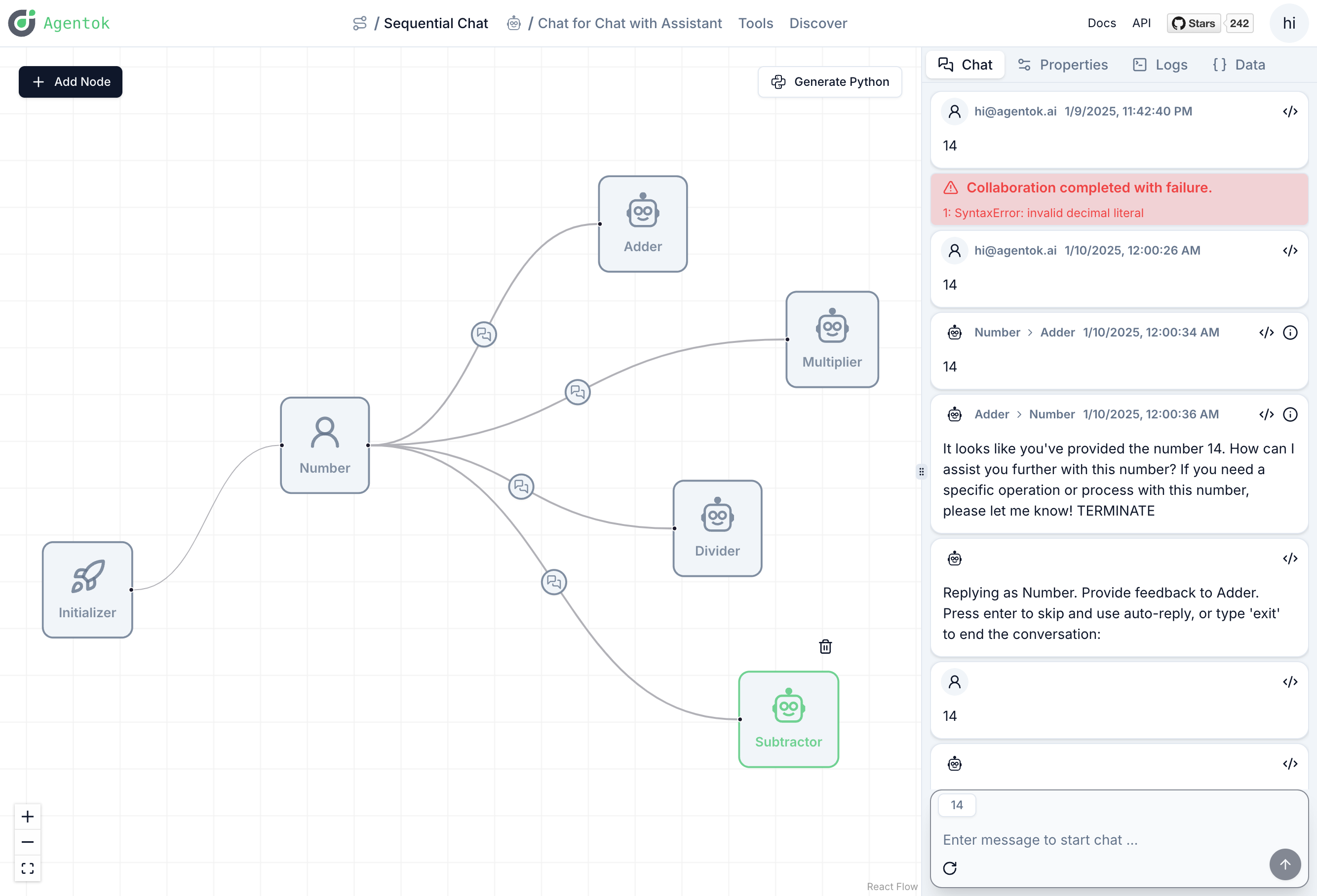

Sequential chat

Connect two agents with a directed edge to create a one-to-one conversation path. The source agent can hand off messages to the target agent.

This pattern fits pipelines: a planner hands work to an executor, or an assistant passes code to a user proxy for execution.

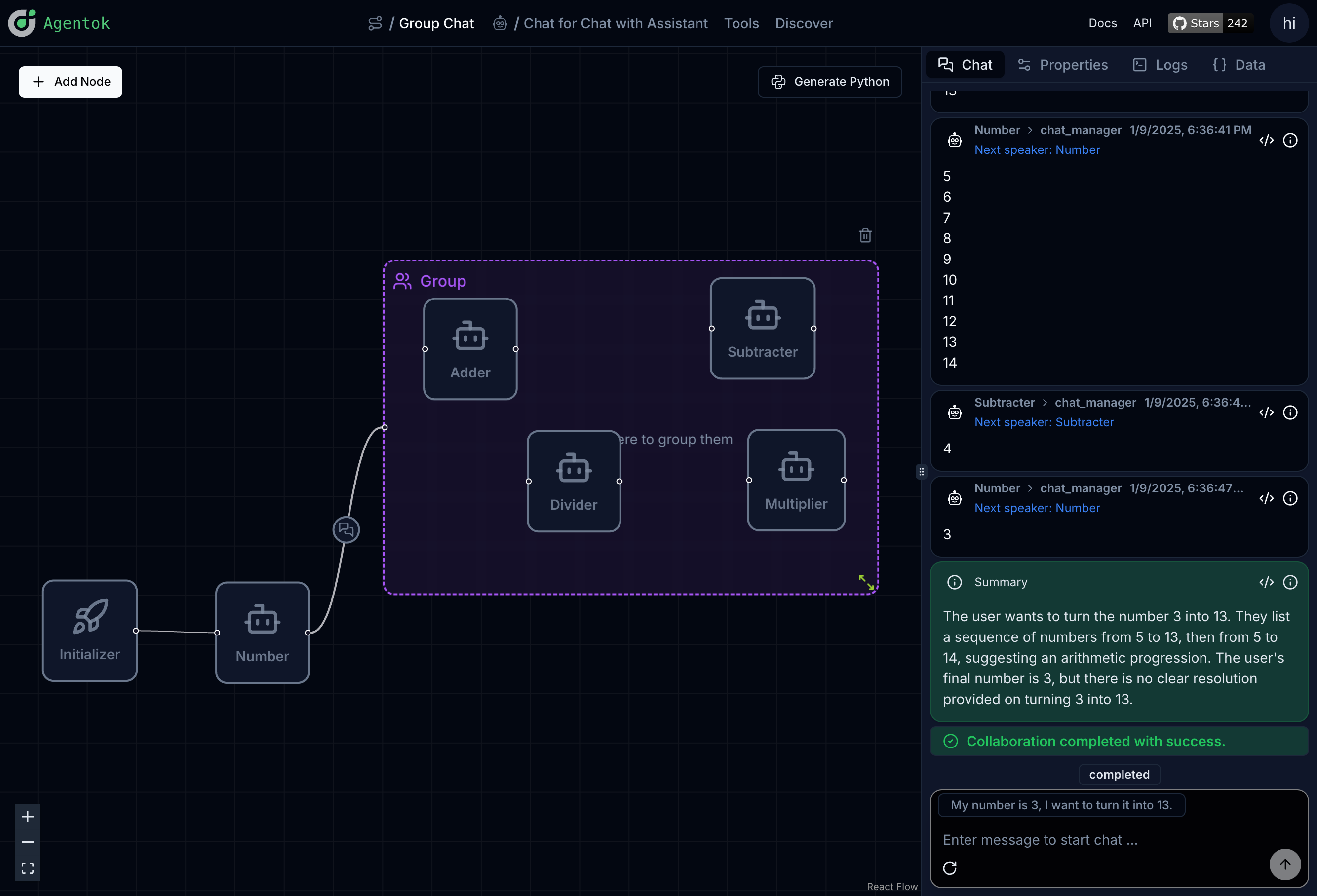

Group chat

Place multiple agents inside a Group node to run a GroupChat. One agent (often a manager) decides who speaks next.

Group chat suits open-ended collaboration — brainstorming, debate, or multi-role problem solving.

Tools on edges

To let an agent call a tool during a conversation, attach the tool to the edge between the speaking agent and the executor.

The LLM chooses which tool to invoke; the edge configuration tells the runtime which node runs it. This is why tool placement on connections matters — not just on individual agents.

Configure tools on an edge from the edge property panel after selecting the connection.

AG2 patterns reference

Agentok Studio supports the conversation patterns documented in AG2:

• Two-agent chat (user proxy + assistant)
• Sequential chats with multiple assistants
• Group chat with a manager
• Nested chats via custom functions (see Ask Planner)

For the underlying theory, see AG2 conversation patterns .

Next: Tools
