API

Agentok Studio provides a set of APIs to manage your chatbots and conversations. By using these APIs, you can integrate Agentok Studio service into your own applications.

Here we introduce how to use Agentok Studio service via API.

API Suite

Access the suite of Agentok Studio APIs as follows:

• GET /chats: Retrieve a list of current chat sessions.
• GET /chats/{chat_id}: Fetch the status of a specific chat session.
• POST /chats: Initiate a new chat session.
• DELETE /chats/{chat_id}: Remove a specified chat session.
• POST /chats/{chat_id}/messages: Commence communication by transmitting a message to a chat session.
• GET /chats/{chat_id}/messages: Retrieve the message history from a chat session.
• POST /chats/{chat_id}/input: Convey a message to a chat session awaiting human input.

These APIs are available through the <agentok-api-domain>/ endpoint. For instance, if utilizing Agentok Studio's online services, your endpoint would be https://api.agentok.ai/.

Refer to the API Reference for detailed specifications.

warning

The API endpoints outlined in this document are currently in a provisional state and may undergo changes.

We welcome any feedback or issues you encounter via our GitHub Issue Tracker. Your contributions help us improve..

Authentication Protocols

Agentok Studio's APIs support authentication via OAuth2 Bearer Tokens and API Keys. For third-party application integrations, the provision of an API Key in the request header (X-API-KEY) is the recommended authentication method.

Below are examples of how to apply the API Key within various platforms:

Bash

curl --request GET \
    --url 'https://api.agentok.ai/chats' \
    --header 'X-API-KEY: <api-key>'

TypeScript

const res = await fetch(`${NEXT_PUBLIC_BACKEND_URL}/chats`, {
  headers: {
    'Content-Type': 'application/json',
    'X-API-KEY': `${token}`,
  },
});
const chat = await res.json();

Python

response = self.client.get(
    f'{self.base_url}/chats',
    headers={"X-API-KEY": api_key},
)
response.raise_for_status()
get_result = response.json()

For additional information, please consult the API Reference.

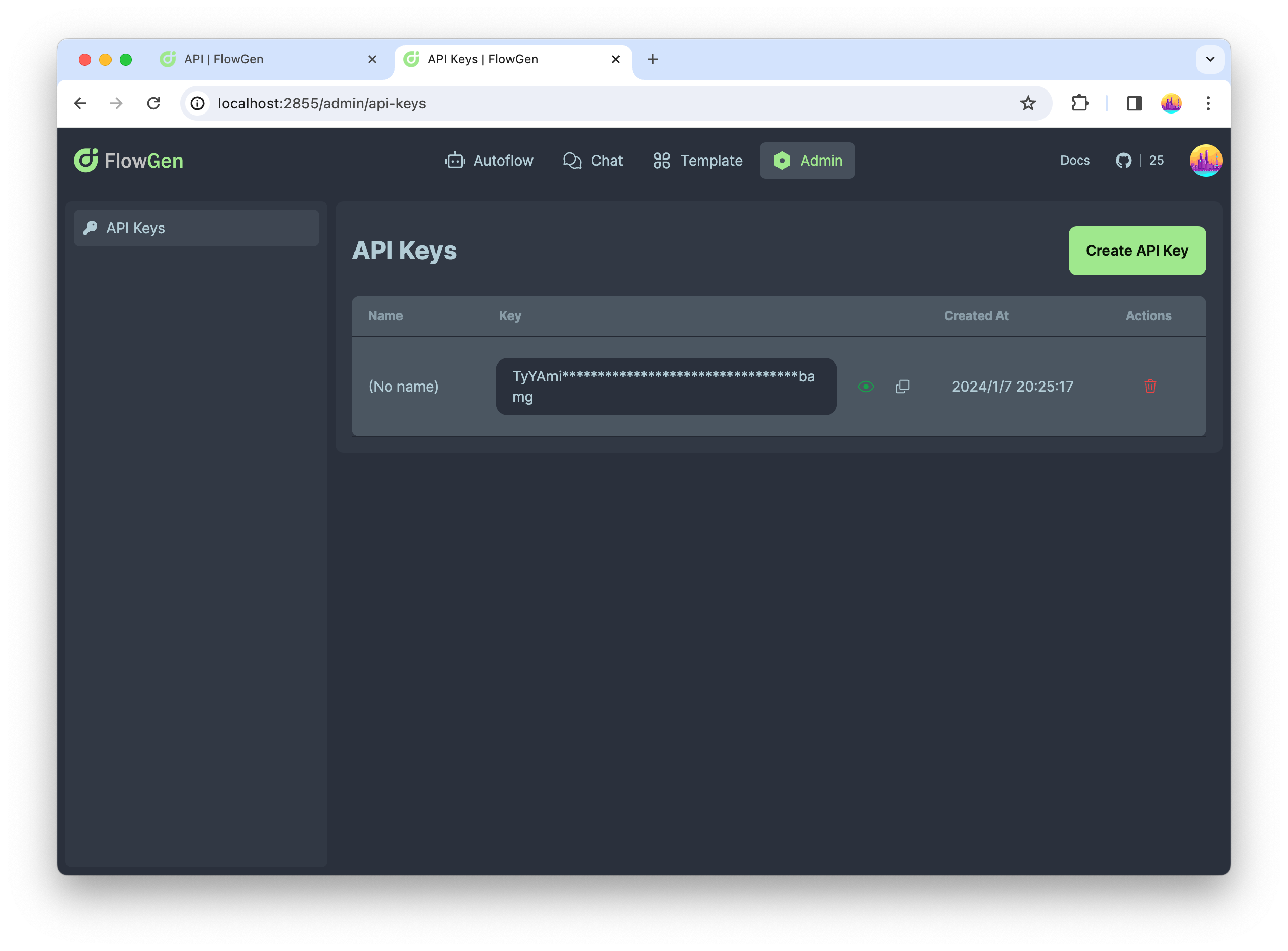

Managing API Keys

To authenticate API requests, API Keys are mandatory. Create and oversee your API Keys through the Agentok Studio Platform.

API Keys can be uniquely generated for distinct operational environments, such as separate keys for development and production. They can be invalidated at any moment through deletion on the management interface.

Implementation Example: Crafting a Chatbot

Leverage the diverse capabilities of Agentok Studio's API suite to create a functional chatbot:

Step 1: Chatbot Creation

First, create a chatbot by calling POST /chats API.

curl --request POST \
     --url 'https://api.agentok.ai/chats' \
     --header 'X-API-KEY: <api-key>'
     --header 'Content-Type: application/json' \
     --data-raw '{ \
         "name": "My Chatbot", \
         "from_type": "flow", \
         "from_flow": "flow_id", \
     }'

Step 2: Communication Initiation

Transmit a message to your chatbot utilizing the POST /v1/chats/{chat_id}/messages API:

curl --request POST \
     --url 'https://api.agentok.ai/chats/{chat_id}/messages' \
     --header 'X-API-KEY: <api-key>' \
     --header 'Content-Type: application/json' \
      --data-raw '{
          "message": "Hello, Agentok Studio!"
      }'

Step 3: Monitoring Chatbot Status

Given the potential delays introduced by multi-agent collaboration, verify your chatbot's state with a GET request using /chats/{chat_id}:

curl --request GET \
     --url 'https://api.agentok.ai/chats/{chat_id}' \
     --header 'X-API-KEY: <api-key>'

The status might exhibit one of the following values:

• ready: The chatbot is ready to run
• running: The chatbot is running
• wait_for_human_input: The chatbot is waiting for human input
• completed: The chatbot has finished. It has not big difference with ready status. You can still send message to the chatbot to start a new conversation.
• error: The chatbot has encountered an error

Step 4: Retrieving Messages

Extract the communication archive via GET /chats/{chat_id}/messages:

curl --request GET \
     --url 'https://api.agentok.ai/chats/{chat_id}/messages' \
     --header 'X-API-KEY: <api-key>'
     --header 'Content-Type: application/json' \

info

Utilizing WebSocket technology offers a superior approach for message retrieval, effectively eliminating the inefficiencies of busy waiting that accompany traditional HTTP requests.

We are actively developing this feature to enhance communication capabilities within our service.

Step 5: Interjecting in Awaiting Conversations

If the chatbot is waiting for human input, you can send a message to the chatbot by calling POST /chats/{chat_id}/input API.

curl --request POST \
     --url 'https://api.agentok.ai/chats/{chat_id}/input' \
     --header 'X-API-KEY: <api-key>' \
      --header 'Content-Type: application/json' \
        --data-raw '{
            "message": "Hello, Agentok Studio!"
        }'

Step 6: Concluding the Dialogue

Conclude and remove the chat session through a DELETE on the chats/{chat_id} endpoint:

curl --request DELETE \
     --url 'https://api.agentok.ai/chats/{chat_id}' \
     --header 'X-API-KEY: <api-key>'

Final Thoughts

This primer has elucidated the methodology to utilize the Agentok Studio service via API. Harness these interfaces to embed Agentok Studio functionalities within bespoke applications or to enhance your existing digital services.
